Name: High Efficiency Adjustable Kaolinite Fine Crusher For Brick And Tile Raw Material Factory
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PCX0905
Availability: InStock

Home > Products > Sand Making Machine >

High Efficiency Adjustable Kaolinite Fine Crusher For Brick And Tile Raw Material Factory

Adjustable Kaolinite Fine Rock Crusher

High Efficiency Fine Crusher

High Efficiency Rock Crusher

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PCX0905

Chat Now

Request A Quote

Product Details

Product Name:

High-efficiency Adjustable Fine Crusher

Warranty:

12 Months

Installation Method:

Stationary

Power Source:

Electricity

Application:

Brick And Tile Raw Material Factory

Color:

Customizable

Capacity:

Varies Depending On Plant Size

Control System:

Automated

Highlight:

Adjustable Kaolinite Fine Rock Crusher

High Efficiency Fine Crusher

High Efficiency Rock Crusher

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C,T/T

Supply Ability

200 sets/year

Granite Stone Crusher HSI Mining Crushing Machine For Construction Gravel Plant

Chat Now

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Chat Now

Pebble Crusher Movable Horizontal Shaft Impactor Crusher For Gravel Processing Plant

Chat Now

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

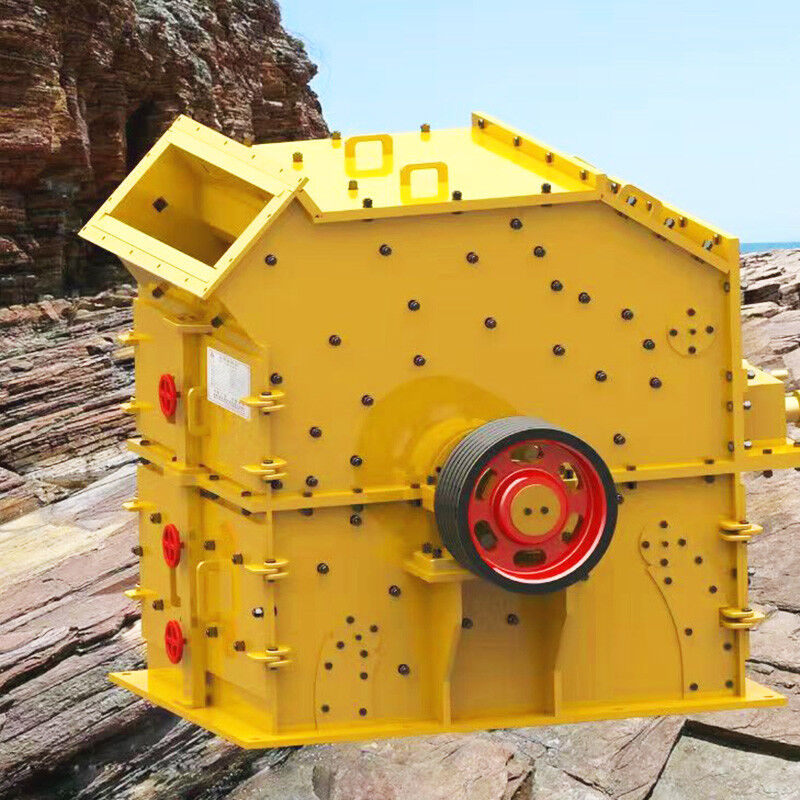

High Efficiency Adjustable Kaolinite Fine Crusher

The PCX series high-efficiency adjustable fine crusher is engineered for brick and tile raw material factories, delivering exceptional performance in medium and fine crushing applications.

Product Specifications

Product Name	Capacity	Power	Input Material	Output Function	End Users
High-efficiency Adjustable Fine Crusher	30 t/h	55kw	Kaolinite	Brick and Tile Raw Material	Brick and Tile Raw Material Factory

Key Features

Large Crushing Ratio: Delivers superior size reduction for finer, more uniform crushed material
Small Discharge Particle Size: Produces fine materials ideal for various industrial applications
Adjustable Particle Size Distribution: Flexible settings to meet specific project requirements
Counterattack Plate Design: Combines hammer and counterattack characteristics for enhanced crushing capacity and efficiency
Wide Range of Applications: Suitable for metal ores, non-metallic ores, cement pre-grinding, ceramic raw materials, refractory materials, shale, coal gangue, gypsum, quartz sand, and chemicals
Specialized for Brick and Tile Manufacturing: Optimized performance for construction material production

Technical Parameters

Model	PCX-0804	PCX-0905	PCX-0908	PCX-1110	PCX-1310	PCX-1315
Hammer Quantity (pc)	15	15	21	21	21	30
Feeding Particle Size (mm)	<80	<80	<80	<100	<100	<100
Avg. Discharge Particle Size (mm)	≤3	≤6	≤3	≤6	≤3	≤6
Output (t/h)	20-25	25-30	30-45	40-60	50-70	70-90
Motor Power (kw)	37	55	90	132	200	250
Dimension: L×W×H (cm)	172×120×140	172×134×150	176×174×153	192×210×189	258×222×219	258×262×219
Brickyard Capacity (10K/day)	4	6	10	16	22	28

Production Note: The above specifications are based on raw materials consisting of 50% shale and 50% coal gangue with fineness ≤3mm. Actual production may vary significantly depending on raw material hardness and moisture content. Pure shale production is approximately 30% higher than indicated, while pure coal gangue production is approximately 20-30% lower than indicated.

Packing and Shipping

Product Packaging: The impact crusher is securely packed in wooden crates with all necessary parts and accessories included.

Shipping: Delivered via reliable shipping services with costs calculated based on destination and package weight. Delivery times vary by location.
