800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

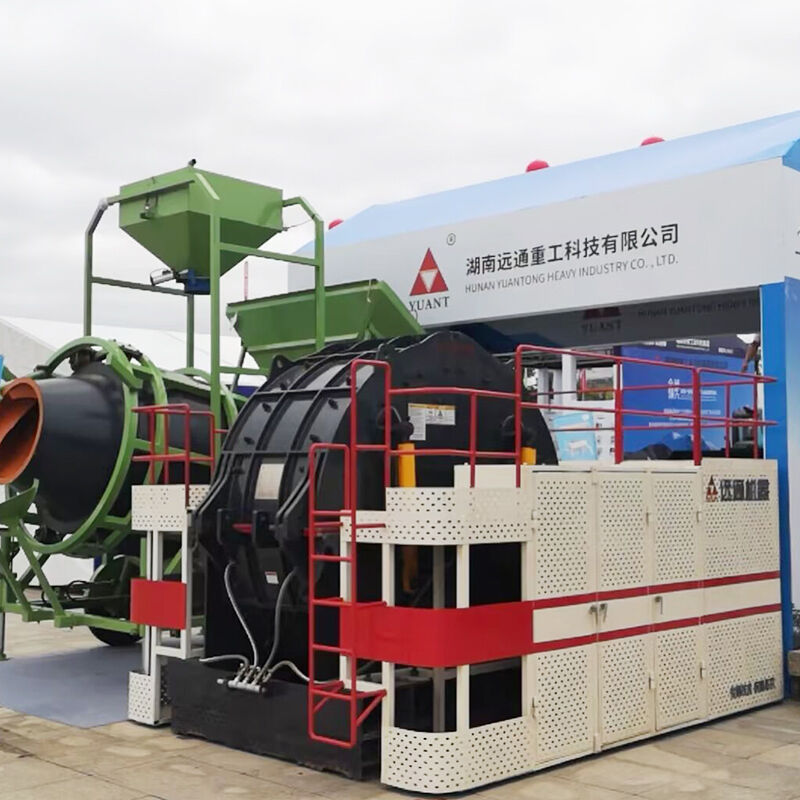

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

800kw Horizontal Shaft Impact Crusher

Gravel Production Shaft Impact Crusher

800kw horizontal shaft impactor

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PW4010

Chat Now
Request A Quote
800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production
Product Details
Product Name:
Horizontal Shaft Impactor Crusher
Warranty:
12 Months
Installation Method:
Stationary
Power Source:
Electricity
Application:
For Road Base Gravel Production
Color:
Customizable
Capacity:
Varies Depending On Plant Size
Control System:
Automated
Highlight:

800kw Horizontal Shaft Impact Crusher

,

Gravel Production Shaft Impact Crusher

,

800kw horizontal shaft impactor

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Small items: wooden box; Large device: container
Delivery Time
1-8 Weeks
Payment Terms
L/C,T/T
Supply Ability
200 sets/year
RELATED PRODUCTS
Good price Granite Stone Crusher HSI Mining Crushing Machine For Construction Gravel Plant online

Granite Stone Crusher HSI Mining Crushing Machine For Construction Gravel Plant

Chat Now
Good price Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply online

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Chat Now
Good price Pebble Crusher Movable Horizontal Shaft Impactor Crusher For Gravel Processing Plant online

Pebble Crusher Movable Horizontal Shaft Impactor Crusher For Gravel Processing Plant

Chat Now
Good price 800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production online

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

Chat Now
CONTACT US
86--18175766687
mo@hnytgs.com
Chat Now
Product Description
800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production
Product Overview

This horizontal shaft impact crusher efficiently processes calcite into high-quality manufactured sand (M-Sand) specifically designed for road base gravel production applications.

Key Features & Benefits
  • Reduced Overall Investment: Large crushing ratio and high production efficiency minimize the need for additional crushing equipment like cone crushers and impact crushers
  • Superior Particle Shape: Excellent output quality reduces investment in subsequent shaping equipment
  • Optimized Process Flow: Streamlined operation with fewer equipment requirements while maintaining production scale and product quality standards
Ideal Applications & Materials
Primary Applications:
  • River pebbles processing
  • Granite and basalt crushing
  • Limestone processing
  • Secondary or tertiary crushing operations
  • Gravel and sand production lines
Typical Use Cases:
  • Road base gravel production
  • Concrete aggregate preparation
  • Landscaping material processing
  • River pebble crushing plants
Product Specifications
Product Name Capacity Power Input Material Output Function End Users
Horizontal Shaft Impactor Crusher 300 t/h 800kw Calcite Manufactured Sand, M-Sand, Machine-made Sand Glass raw materials plants, Construction sand and gravel processing plants
Technical Parameters
Model Max. Feed Size (mm) Capacity (t/h) Product Size (mm) Output (t/h) Motor Power (kw) Dimensions (mm)
PW2006 ≤70 40-50 0-5mm
5-31.5mm		 25-30
10-15		 90 360x150x207
PW2008 ≤80 60-80 0-5mm
5-31.5mm		 40-55
15-20		 160 362x191x210
PW3008 ≤90 90-110 0-5mm
5-31.5mm		 55-65
20-30		 250 385x242x255
PW3308 ≤100 120-140 0-5mm
5-31.5mm		 70-90
30-40		 315 432x296x266
PW3608 ≤100 160-200 0-5mm
5-31.5mm		 110-130
30-40		 400 518x318x312
PW4010 ≤100 300-400 0-5mm
5-31.5mm		 200-250
60-80		 2x315(400) 704x418x370
Technical Support & Services
  • Installation and commissioning assistance
  • Regular maintenance and inspection
  • Troubleshooting and problem resolution
  • Spare parts and wear materials supply
  • Operational training and support
  • Upgrades and retrofits to improve performance and efficiency
800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production 0
