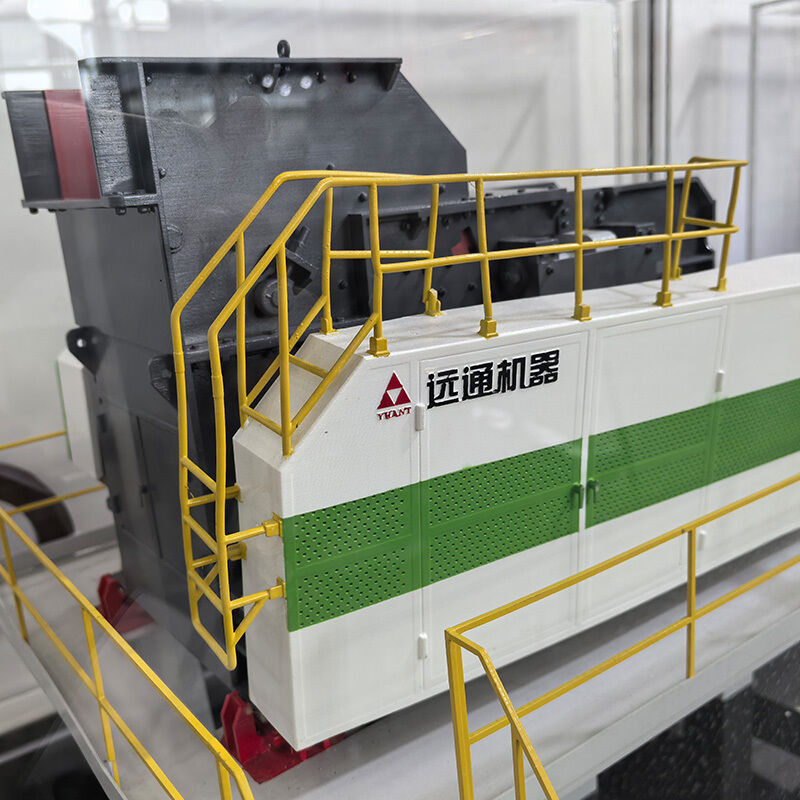

Name: High Strength Copper Ore Impact Crushing Machine For Ore Dressing Plant
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PYH300
Availability: InStock

Home > Products > Sand Making Machine >

High Strength Copper Ore Impact Crushing Machine For Ore Dressing Plant

Copper Ore Impact Crushing Machine

High Strength Impact Crushing Machine

Ore Dressing Plant Impact Crusher

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PYH300

Chat Now

Request A Quote

Product Details

Product Name:

High Strength Impact Crushing Machine

Warranty:

12 Months

Installation Method:

Stationary

Power Source:

Electricity

Application:

Copper Ore Dressing Plant

Color:

Customizable

Capacity:

Varies Depending On Plant Size

Control System:

Automated

Highlight:

Copper Ore Impact Crushing Machine

High Strength Impact Crushing Machine

Ore Dressing Plant Impact Crusher

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C,T/T

Supply Ability

200 sets/year

Granite Stone Crusher HSI Mining Crushing Machine For Construction Gravel Plant

Chat Now

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Chat Now

Pebble Crusher Movable Horizontal Shaft Impactor Crusher For Gravel Processing Plant

Chat Now

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

High Strength Copper Ore Impact Crushing Machine

Designed specifically for ore dressing plants, this high-strength impact crushing machine delivers exceptional performance in processing copper ore and other hard, abrasive materials.

Key Features

Rotor: High-speed rotating component with blow bars for effective material impact
Feed Hopper: Optimized entry point for efficient material feeding
Impact Plates: Strategically positioned to control material flow within crushing chamber
Adjustable Outlet: Flexible gap adjustment for precise final product sizing
Drive System: Powered by electric motor, diesel engine, or hydraulic system
Safety Features: Comprehensive protection including overload protection, automatic adjustment, and emergency stop functions

Technical Specifications

Model	Max Feed Size (mm)	Discharge Size (mm)	Processing Capacity (t/h)	Power (kw)	Dimensions (cm)	Weight (t)
PYH50	400	30-70	80-150	45-75	386x215x248	21
PYH100	500	30-70	120-260	90-132	398x273x275	33
PYH200	600	30-70	220-360	160-200	455x328x320	55
PYH300	700	30-70	320-480	220-315	523x378x380	93
PYH400	800	30-70	430-600	355-450	610x419x420	128
PYH500	900	30-80	530-700	500-630	680x473x482	172

Application Details

Product: High Strength Impact Crushing Machine

Capacity: 350 t/h

Power: 315kw

Input Material: Copper ore

Output Function: Copper smelting raw materials

End Users: Copper ore dressing plants

Benefit: No investment required in primary crushing equipment

Performance Advantages

Approximately 40% energy savings compared to conventional crushers
Extended replacement cycles for throw heads by 5-7 times
Low wear and tear for increased continuous production cycles
Large feed particle size capability
Sand production rate around 70% (higher for melon seeds stones)
Adjustable grading for various material characteristics
Low oversize rate with excellent particle shape

Technical Support & Services

Installation and commissioning assistance
Regular maintenance and inspection programs
Troubleshooting and problem resolution support
Spare parts and wear materials supply
Operational training and technical support
Performance upgrades and retrofits

Packaging & Shipping

Packaging: Equipment is securely packaged in plywood boxes to ensure safe transportation.
Shipping: Worldwide shipping available through various carriers. Shipping costs vary by destination and method. Contact us for a detailed shipping quote.
