Name: Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PWS3608
Availability: InStock

Home > Products > Sand Making Machine >

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Movable M Sand Crusher Machine

Construction Site M Sand Crusher Machine

Construction Site msand crusher

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PWS3608

Chat Now

Request A Quote

Product Details

Product Name:

Horizontal Shaft Impactor Crusher

Warranty:

12 Months

Installation Method:

Stationary

Power Source:

Electricity

Application:

Construction Site Aggregate Supply

Color:

Customizable

Capacity:

Varies Depending On Plant Size

Control System:

Automated

Highlight:

Movable M Sand Crusher Machine

Construction Site M Sand Crusher Machine

Construction Site msand crusher

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C,T/T

Supply Ability

200 sets/year

Granite Stone Crusher HSI Mining Crushing Machine For Construction Gravel Plant

Chat Now

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Chat Now

Pebble Crusher Movable Horizontal Shaft Impactor Crusher For Gravel Processing Plant

Chat Now

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

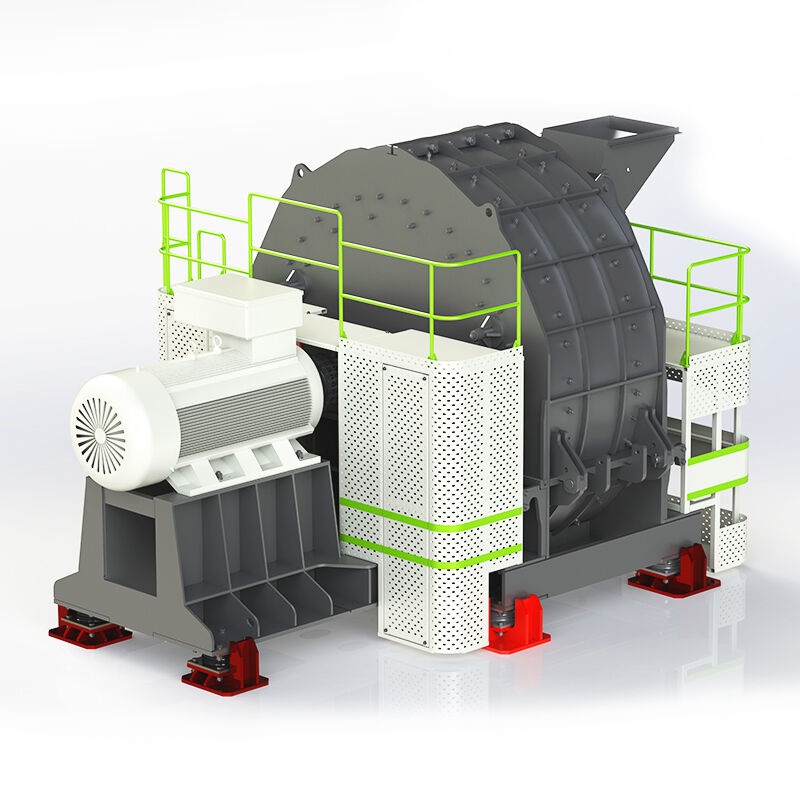

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Sand Movable Impact Crusher for Temporary Construction Site Aggregate Supply

A Horizontal Shaft Impactor (HSI) crusher uses a horizontal rotor to accelerate material and impact it against breaker plates. Its on-site crushing capability allows easy deployment across different parts of the worksite, eliminating the need to transport raw materials over long distances.

Ideal Applications

River pebbles
Granite and basalt
Limestone
Secondary or tertiary crushing
Gravel and sand production lines

Typical Use Cases

Road base gravel production
Concrete aggregate preparation
Landscaping material processing
River pebble crushing plants

Key Features

Mobility: Truck-mounted or crawler-mounted for easy relocation
Adjustable rotor speed: Controls final grain size and shape
Hydraulic opening: Easy maintenance and access to internals
High reduction ratio: Ideal for producing uniform gravel
Heavy-duty construction: Designed for hard rock applications

Technical Specifications

Model	Max. Feed Size (mm)	Capacity (t/h)	Product Size (mm)	Output (t/h)	Motor Power (kw)	Dimensions (mm)
PWS2006	≤80	80-100	0-5mm 5-31.5mm	20-60 30-70	90	295x246x318
PWS2008	≤100	120-160	0-5mm 5-31.5mm	30-90 60-120	160	331x284x361
PWS3008	≤100	180-220	0-5mm 5-31.5mm	40-125 85-170	250	461x296x396
PWS3308	≤120	240-280	0-5mm 5-31.5mm	50-160 100-210	315	465x326x416
PWS3608	≤120	320-400	0-5mm 5-31.5mm	80-220 160-300	400	475x360x446
PWS4010	≤150	800-1000	0-5mm 5-31.5mm	300-500 400-600	2x315(400)	704x418x510

Applications & Market Overview

Manufactured sand (M-sand) is available in two primary types: coarse sand for concrete applications and fine sand for plastering. Technological advancements now enable production of fine materials for both segments. The water industry represents a growing application area, with many water companies increasingly relying on engineered sand, providing significant growth potential for the M-sand segment. Increased investments and modern crusher plants are expanding beyond tier-1 cities into tier-2 and tier-3 urban centers.

Product Specifications

Product Name	Capacity	Power	Input Material	Output Function	End Users
Horizontal Shaft Impactor Crusher	100 t/h	315kw	Pebbles	M Sand	Construction sand and gravel processing plants

Technical Support & Services

Installation and commissioning assistance
Regular maintenance and inspection
Troubleshooting and problem resolution
Spare parts and wear materials supply
Operational training and support
Upgrades and retrofits to improve performance and efficiency
