Name: 630kw Quartz Horizontal Shaft Impactor Crusher For Construction Sand Plant
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PW4010
Availability: InStock

Home > Products > Sand Making Machine >

630kw Quartz Horizontal Shaft Impactor Crusher For Construction Sand Plant

630kw Quartz Crusher

630kw Horizontal Shaft Impactor Crusher

Construction Sand Plant Impactor Crusher

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PW4010

Chat Now

Request A Quote

Product Details

Product Name:

Horizontal Shaft Impactor

Warranty:

12 Months

Installation Method:

Stationary

Power Source:

Electricity

Application:

Construction Sand Plant

Color:

Customizable

Capacity:

Varies Depending On Plant Size

Control System:

Automated

Highlight:

630kw Quartz Crusher

630kw Horizontal Shaft Impactor Crusher

Construction Sand Plant Impactor Crusher

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C,T/T

Supply Ability

200 sets/year

Granite Stone Crusher HSI Mining Crushing Machine For Construction Gravel Plant

Chat Now

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Chat Now

Pebble Crusher Movable Horizontal Shaft Impactor Crusher For Gravel Processing Plant

Chat Now

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

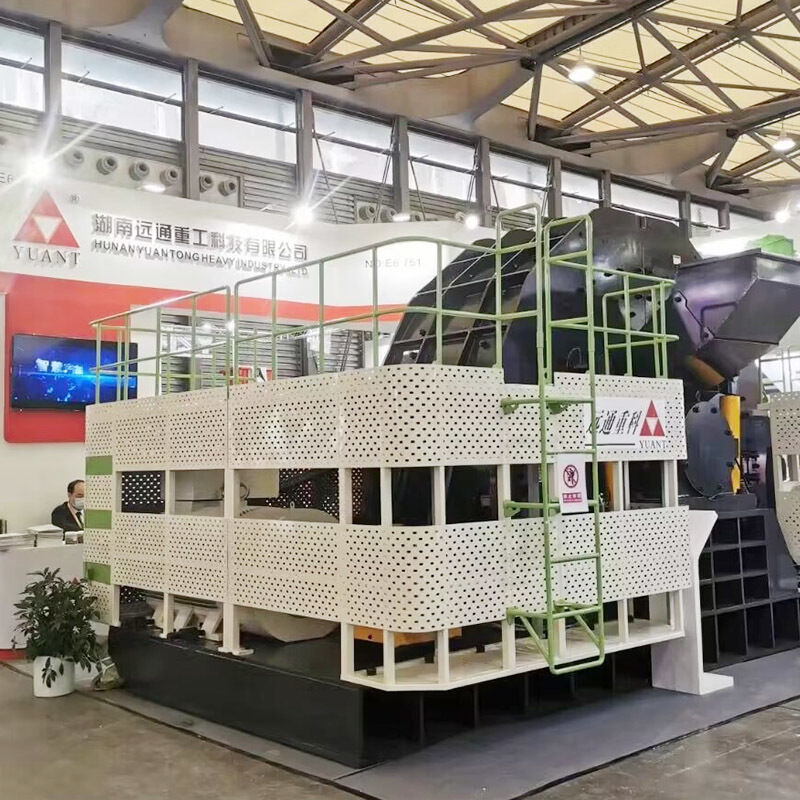

630kw Quartz Horizontal Shaft Impactor Crusher

High-performance crushing machine designed for construction sand plants and glass raw materials processing facilities.

Key Advantages

No investment required in primary crushing equipment - ready for immediate integration into your production line.

Improved grinding efficiency with reduced energy consumption
Superior particle size distribution and product quality
Lower equipment wear and reduced maintenance costs
Enhanced automation and smart manufacturing capabilities
Environmental and green operational benefits

Product Specifications

Product Name	Capacity	Power	Input Material	Output Function	End Users
Horizontal Shaft Impactor Crusher	200 t/h	630kw	Quartz	Cement raw materials	Glass raw materials plants, construction sand and gravel processing plants

Proven Performance Results

Company	Application Results	Energy Reduction	Grinding Efficiency Improvement
Major Cement Plant	3 million tons of clinker/year	25% reduction	30% increase
Southern Cement Plant	Replaced traditional hammer crusher	20-22% reduction	25-30% increase

Technical Parameters

Model	Max. Feed Size (mm)	Capacity (t/h)	Product Size (mm)	Output (t/h)	Motor Power (kw)	Dimensions (mm)
PW2006	≤70	40-50	0-5mm 5-31.5mm	25-30 10-15	90	360x150x207
PW2008	≤80	60-80	0-5mm 5-31.5mm	40-55 15-20	160	362x191x210
PW3008	≤90	90-110	0-5mm 5-31.5mm	55-65 20-30	250	385x242x255
PW3308	≤100	120-140	0-5mm 5-31.5mm	70-90 30-40	315	432x296x266
PW3608	≤100	160-200	0-5mm 5-31.5mm	110-130 30-40	400	518x318x312
PW4010	≤100	300-400	0-5mm 5-31.5mm	200-250 60-80	2x315(400)	704x418x370

Packaging and Shipping

Product Packaging:

The impact crusher is securely packed in a wooden crate to ensure safety during transportation
All necessary parts and accessories are included in the package

Shipping:

Shipped via reliable and efficient shipping services
Shipping cost calculated based on destination and package weight
Delivery times vary depending on customer location
