Name: Electric All In One Sand Making Equipment With Customizable Color
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: XHT3085
Availability: InStock

Home > Products > Sand Making Machine >

Electric All In One Sand Making Equipment With Customizable Color

All In One Sand Making Equipment

Customizable Color m sand crusher machine

Electric Sand Making Equipment

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

XHT3085

Chat Now

Request A Quote

Product Details

Product Name:

Integrated Sand Washing & Recycling Machine

Capacity:

120-180 M3/h

Warranty:

12 Months

Total Power:

47KW

Color:

Customizable

Application:

Sand Washing&fine Sand Recovery

Power Source:

Electricity

Highlight:

All In One Sand Making Equipment

Customizable Color m sand crusher machine

Electric Sand Making Equipment

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C, T/T

Supply Ability

200 sets/year

Granite Stone Crusher HSI Mining Crushing Machine For Construction Gravel Plant

Chat Now

Movable M Sand Crusher Machine For Temporary Construction Site Aggregate Supply

Chat Now

Pebble Crusher Movable Horizontal Shaft Impactor Crusher For Gravel Processing Plant

Chat Now

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

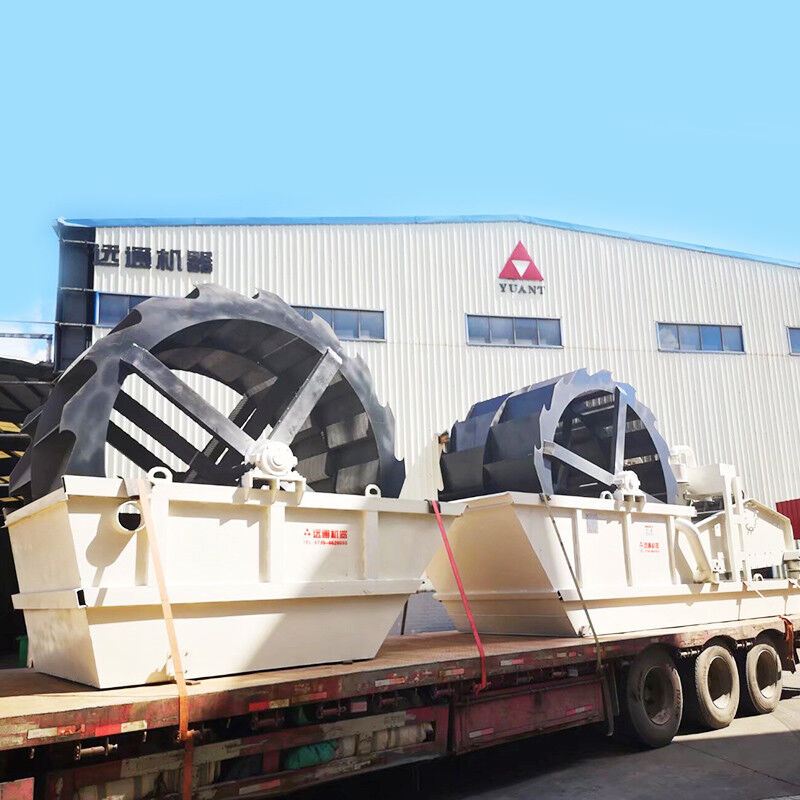

Electric All In One Sand Making Equipment With Customizable Color

Fine Sand Washer, Recycling and Dewatering All-in-one Integrated Equipment

Product Overview

The Electric All In One Sand Making Equipment combines washing, recycling, and dewatering functions in a single integrated unit. Wheel sand washer capacity varies by model and design specifications, typically measured by the volume of material processed within a specific timeframe.

Industrial-grade wheel sand washers used in mining and construction applications offer capacities ranging from tens of tons per hour to several hundred tons per hour, depending on equipment size and design.

Capacity Factors

Multiple factors influence wheel sand washer capacity and efficiency:

Rotation Speed: Higher impeller rotation speeds enhance cleaning efficiency and throughput
Water Flow Rate: Adequate water supply is essential for effective cleaning and material transportation
Material Feed Rate: Determines processing capacity within given timeframes
Particle Size and Composition: Fine or lightweight materials may require extended cleaning time
Operating Conditions: Material contamination levels, clay content, and overall cleanliness impact efficiency
Maintenance and Wear: Regular maintenance of impeller, bearings, and screens ensures optimal performance
Design Efficiency: Impeller configuration, washing chamber size, and water jet arrangement affect capacity

Product Structure

The integrated sand washing and recycling dewatering machine features two main sections: sand washing and fine sand recovery. The sand washing section performs washing, dewatering, and desliming functions similar to standard wheel-type sand washers. The recovery section can be customized with standard fine sand recovery systems or dewatering-type fine sand recovery machines. Multi-layer dewatering screens can be configured to meet specific sand output requirements.

Product Advantages

Combines sand washing and fine sand recovery functions including water washing, dewatering, and recovery
Rational structure design with compact footprint and simple installation
Lower investment costs compared to purchasing two separate units
Customizable configurations to meet specific operational requirements
Superior cleaning performance compared to traditional sand washers, enhancing sand quality and value
Higher operational efficiency with reduced energy consumption and environmental impact
Long service life with minimal maintenance requirements

Technical Parameters

Model	Total Power (kw)	Feeder (mm)	Sand Output (m³/h)	Weight (t)	Dimension (mm)
XHT3065	27	≤10	50-80	5	5900x2000x2600
XHT3075	36	≤10	80-120	7	6500x2500x3000
XHT3085	47	≤10	120-180	9	7100x3000x3600
