Product Description

Compact High Performance M Sand Crusher Machine

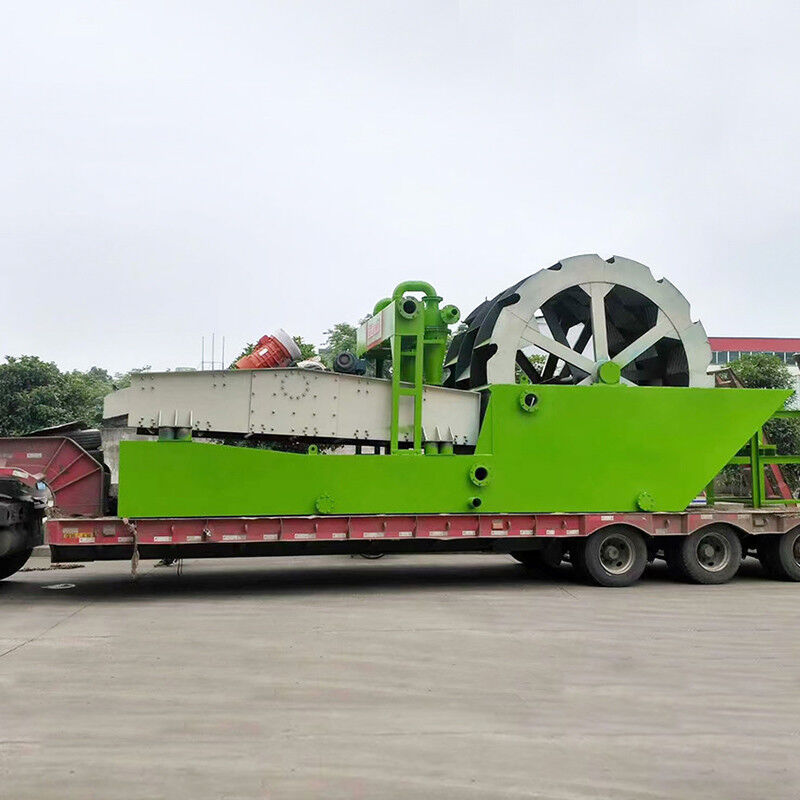

XHT3075 Compact and High-Performance Sand Washing Recycling and Dewatering Machine

The Sand Washing Recycling and Dewatering Machine integrates water washing, fine sand dewatering, and recovery functions into a single, efficient unit. This comprehensive solution is also known as a sand washing and recycling unit, fine sand recovery and dewatering integrated machine, or mud-sand water washing separation equipment.

This innovative machine combines the fine sand recovery machine with the sand washer, offering a compact design and cost-effective solution compared to purchasing two separate units.

Working Principle

The sand-water mixture enters the cleaning tank where the impeller separator separates components. Material then moves to the lower dewatering screen for processing. Overflow water containing fine sand, mud, dust, and impurities is pumped by a vacuum high-pressure pump to a high-pressure separator. Concentrated fine sand is discharged through the sand settling nozzle onto the dewatering screen's upper layer, while waste materials are discharged through the overflow outlet.

The wheel sand washer operates by using a rotating impeller to create friction and agitation, effectively scrubbing and cleaning materials while separating impurities from sand or crushed ores.

Product Structure

This integrated machine is divided into sand washing and fine sand recovery sections. The sand washing section performs washing, dewatering, and desliming functions similar to standard wheel-type sand washers. The recovery section can be customized to meet specific customer requirements, with options for standard fine sand recovery or dewatering-type fine sand recovery systems.

Product Advantages

Combines sand washing and fine sand recovery functions in one unit
Rational structure with small footprint and simple installation
Lower investment costs compared to separate units
Customizable to specific operational requirements
Superior cleaning performance compared to traditional sand washers
Higher operational efficiency with lower energy consumption
Environmentally friendly operation
Long service life with minimal maintenance requirements

Technical Parameters

Model	Total Power (kw)	Feeder (mm)	Sand Output (m³/h)	Weight (t)	Dimension (mm)
XHT3075	36	≤10	80-120	7	6500x2500x3000

On-site Installation View
