Product Description

Integrated Automated Mobile Crusher Plant Stone Crusher Sand Making Machine

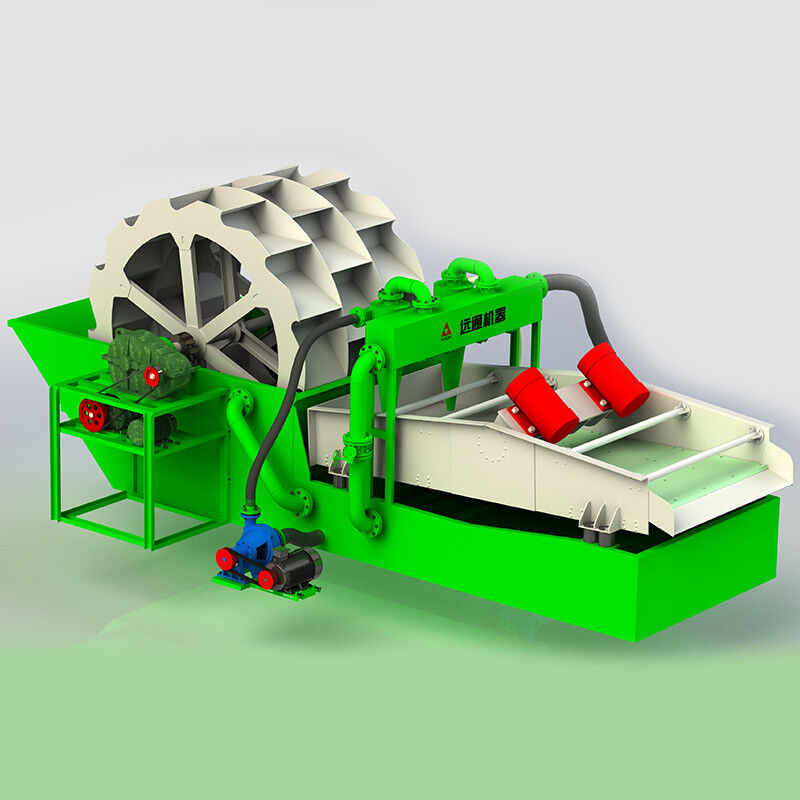

XHT3065 Integrated Sand Washing & Recycling Machine All-in-One Sand Making Machine

The sand washing and recycling integrated machine combines water washing, fine sand dewatering, and recovery into one efficient unit. This all-in-one solution is also known as a sand washing and recycling unit, fine sand recovery and dewatering integrated machine, or mud-sand water washing separation equipment.

Product Introduction

This innovative machine integrates the fine sand recovery machine with the sand washer, featuring a compact and cost-effective design that eliminates the need for investing in two separate units.

Working Principle

The sand-water mixture enters the cleaning tank where the impeller separator separates components. It then proceeds to the lower dewatering screen for dewatering. Overflow water containing fine sand, mud, dust, and impurities is pumped by a vacuum high-pressure pump to a high-pressure separator. The concentrated fine sand is discharged through the sand settling nozzle onto the dewatering screen, while waste water and impurities are discharged through the overflow outlet.

The wheel sand washer operates by using a rotating impeller to scrub and clean materials through friction and agitation, effectively separating impurities and contaminants from sand or crushed ores.

Product Structure

Sand washing wheel
Water tank
Hydraulic cyclone
High-level water return tank
Vibration motor
Dewatering screen
Discharge outlet
High-wear slurry pump

The machine is divided into sand washing and fine sand recovery sections. The sand washing section performs washing, dewatering, and desliming functions, while the recovery section can be customized with standard fine sand recovery systems or dewatering-type recovery machines to meet specific output requirements.

Product Advantages

Combines sand washing and fine sand recovery functions in one unit
Rational structure with small footprint and simple installation
Lower investment costs compared to separate units
Customizable to specific requirements
Superior cleaning performance improves sand quality and value
Higher operational efficiency with lower energy consumption
Environmentally friendly operation
Long service life with minimal maintenance costs

Technical Parameters

Model	Total Power (kw)	Feeder (mm)	Sand Output (m³/h)	Weight (t)	Dimension (mm)
XHT3065	27	≤10	50-80	5	5900x2000x2600

On-site Installation View
