Home > Products > Manufactured Sand Plant >
High Productivity Electric Vibrating Feeder Electricity Powered 800-1500t/H Capacity

High Productivity Electric Vibrating Feeder Electricity Powered 800-1500t/H Capacity

High Productivity Electric Vibrating Feeder

High Productivity vibrating grizzly feeder

1500t/H Electric Vibrating Feeder

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

ZSW2060

Chat Now
Request A Quote
High Productivity Electric Vibrating Feeder Electricity Powered 800-1500t/H Capacity
Product Details
Product Name:
Mining Vibrating Feeder
Capacity:
800-1500 T/h
Warranty:
12 Months
Feed Slot Size:
2000x6000mm
Color:
Customizable
Application:
Feeding Crushing Materials
Power Source:
Electricity
Highlight:

High Productivity Electric Vibrating Feeder

,

High Productivity vibrating grizzly feeder

,

1500t/H Electric Vibrating Feeder

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Small items: wooden box; Large device: container
Delivery Time
1-8 Weeks
Payment Terms
L/C, T/T
Supply Ability
200 sets/year
RELATED PRODUCTS
Good price 150t/H 250kw Coal Gangue Adjustable Fine Crusher High Efficiency For Thermal Power Plants online

150t/H 250kw Coal Gangue Adjustable Fine Crusher High Efficiency For Thermal Power Plants

Chat Now
Good price High Capacity Vibrating Feeder Machine By Electricity Corrosion Resistance online

High Capacity Vibrating Feeder Machine By Electricity Corrosion Resistance

Chat Now
Good price Customizable Electricity Mining Vibrating Feeder With Dual Eccentric Shaft Exciter online

Customizable Electricity Mining Vibrating Feeder With Dual Eccentric Shaft Exciter

Chat Now
Good price Low Wear High Productivity Manufactured Sand Plant With Customizable Color online

Low Wear High Productivity Manufactured Sand Plant With Customizable Color

Chat Now
CONTACT US
86--18175766687
mo@hnytgs.com
Chat Now
Product Description

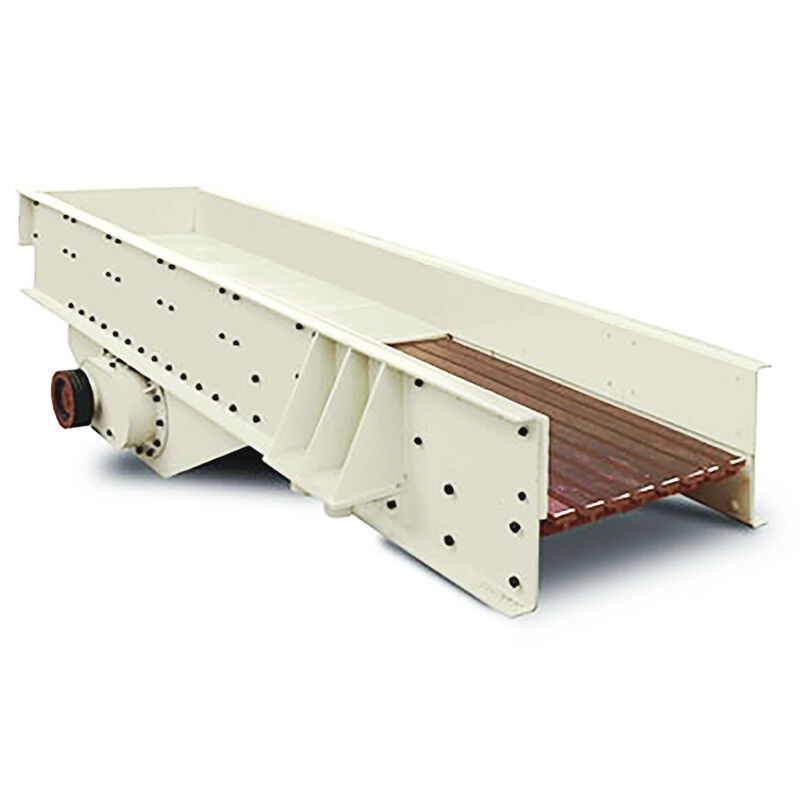

ZSW2060 High Capacity Mining Vibrating Feeder
Product Overview
The ZSW2060 High Productivity Electric Vibrating Feeder delivers exceptional performance with a capacity range of 800-1500 tons per hour. This electricity-powered feeder incorporates advanced foreign technologies and features a built-in pre-screening effect for optimal material processing.
Applications & Industries
Designed for heavy-duty applications in metallurgy, coal mining, mineral processing, building materials, chemicals, and abrasives industries. Ideal for feeding crushed materials including river pebbles, granite, basalt, quartz stone, iron ore, diabase, limestone, calcite, dolomite, barite, talc, gypsum, bentonite, and more.
Key Benefits
  • Increased Productivity: Continuous and uniform feeding improves overall plant efficiency
  • Cost-Effectiveness: Customized solutions reduce waste and optimize resource utilization
  • Enhanced Quality: Ensures uniform material distribution for superior final product quality
  • Pre-screening Capability: Built-in screening function eliminates the need for additional equipment
Working Principle
The ZSW feeder utilizes an inertia-type dual eccentric shaft exciter to generate directional vibration forces. A precisely matched gear system ensures opposite rotation directions with equal speeds. The resulting composite directional vibration force causes the feeder trough to vibrate on supporting springs, enabling materials to slide and be thrown forward along the trough. The integrated baffle system allows smaller materials to pass through for direct processing, providing effective pre-screening and optimizing crushing efficiency.
Technical Specifications
Parameter Specification
Model ZSW2060
Feed Slot Size 2000 × 6000 mm
Maximum Feed Particle Size 1200 mm
Angle Range 5-7°
Capacity 800-1500 t/h
Motor Power 90 kW
On-site Installation
High Productivity Electric Vibrating Feeder Electricity Powered 800-1500t/H Capacity 0
Operational Advantage: The ZSW2060's pre-screening functionality eliminates the need for separate screening equipment, reducing capital investment and operational complexity while maintaining high throughput capacity.
