Name: 150t/H 250kw Coal Gangue Adjustable Fine Crusher High Efficiency For Thermal Power Plants
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PCX-1315
Availability: InStock

Home > Products > Manufactured Sand Plant >

150t/H 250kw Coal Gangue Adjustable Fine Crusher High Efficiency For Thermal Power Plants

250kw Adjustable Fine Crusher

Thermal Power Plants Fine Crusher

150t/h Adjustable Fine Crusher

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PCX-1315

Chat Now

Request A Quote

Product Details

Control System:

Automated

Color:

Customizable

Warranty:

12 Months

Application:

Brick And Tile Manufacturing

Power Source:

Electricity

Capacity:

Varies Depending On Plant Size

Product Name:

Secondary Cone Crusher

Installation Method:

Stationary

Highlight:

250kw Adjustable Fine Crusher

Thermal Power Plants Fine Crusher

150t/h Adjustable Fine Crusher

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C,T/T

Supply Ability

200 sets/year

150t/H 250kw Coal Gangue Adjustable Fine Crusher High Efficiency For Thermal Power Plants

Chat Now

High Capacity Vibrating Feeder Machine By Electricity Corrosion Resistance

Chat Now

Customizable Electricity Mining Vibrating Feeder With Dual Eccentric Shaft Exciter

Chat Now

Low Wear High Productivity Manufactured Sand Plant With Customizable Color

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

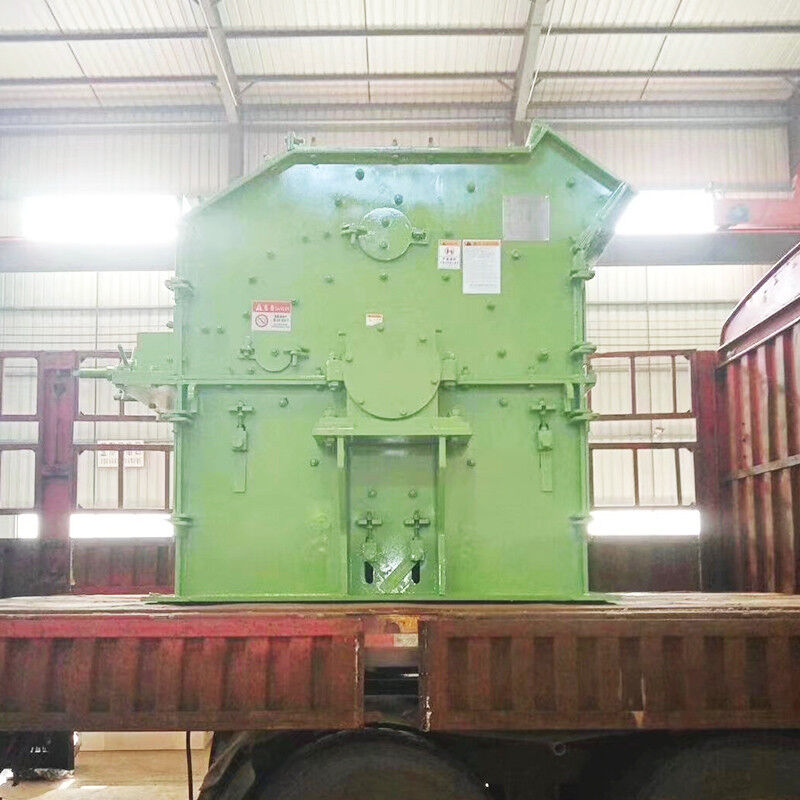

150t/H 250kw Coal Gangue Adjustable Fine Crusher

High efficiency crusher specifically designed for thermal power plants with energy-saving, consumables-saving, and investment-saving benefits.

Application Features

Product Name	Capacity	Power	Input Material	Output Function	End Users
High Efficiency Adjustable Fine Crusher	150 t/h	250kw	Coal gangue	Raw materials for thermal power plants	Thermal power plants or raw material supply plants

Product Description

PCX series high-efficiency adjustable fine crusher features large crushing ratio, small discharge particle size, and easily adjustable particle size distribution. By incorporating a counterattack plate in the crushing chamber, this machine combines hammer and counterattack characteristics to enhance crushing capacity.

Performance Characteristics

Large crushing ratio
Small discharge particle size
Particle size distribution can be easily adjusted
Convenient hammer handle replacement with various hammer head configurations
Unique crushing chamber structure allows free adjustment to maintain fineness and production
No blockage during crushing even with high material moisture and viscosity

Technical Parameters

Model	PCX-1315
Hammer Quantity	30 pieces
Feeding Particle Size	<100 mm
Average Discharge Particle Size	≤3 mm \| ≤6 mm
Output	100-140 t/h \| 130-150 t/h
Motor Power	250 kw
Dimensions (L×W×H)	258×262×219 cm
Brickyard Capacity	28 (10K/day)

Note: The above specifications are based on raw materials consisting of 50% shale and 50% coal gangue with fineness ≤3mm. Production variations occur based on raw material hardness and moisture content. Pure shale production is approximately 30% higher than table values, while pure coal gangue production is 20-30% lower.

Applications

Widely used in medium and fine crushing projects including metal ores, non-metallic ores, pre-grinding of cement, ceramic raw materials, refractory materials, shale, coal gangue, gypsum, quartz sand, chemicals, and excels in brick and tile manufacturing processes.

Technical Support & Services

Installation and commissioning assistance
Regular maintenance and inspection
Troubleshooting and problem resolution
Spare parts and wear materials supply
Operational training and support
Upgrades and retrofits to improve performance and efficiency

Frequently Asked Questions

What is the certification of Yuantong Secondary Cone Crusher?

Yuantong Secondary Cone Crusher is certified with ISO.

Where is Yuantong Secondary Cone Crusher manufactured?

Yuantong Secondary Cone Crusher is manufactured in China.

What is the minimum order quantity for Yuantong Secondary Cone Crusher?

The minimum order quantity for Yuantong Secondary Cone Crusher is 1 set.

What are the payment terms for Yuantong Secondary Cone Crusher?

The payment terms for Yuantong Secondary Cone Crusher are L/C and T/T.

Packing & Shipping

Packaging: The equipment is securely packaged in plywood boxes to ensure safe transportation.

Shipping: Worldwide shipping available with various carriers. Shipping costs vary based on destination and method. Contact us for a shipping quote.
