Name: Efficient Horizontal Cone Stone Crusher Perfect For Mines And Quarries Automated
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PYH500
Availability: InStock

Home > Products > Cone Crusher Machine >

Efficient Horizontal Cone Stone Crusher Perfect For Mines And Quarries Automated

Cone Stone Crusher Automated

Efficient Fine Cone Crusher

Efficient Cone Stone Crusher

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PYH500

Chat Now

Request A Quote

Product Details

Color:

Customizable

Installation Method:

Mobile Crushing Systems Available

Power Source:

Electricity

Warranty:

12 Months

Application:

Mines And Quarries

Capacity:

Varies Depending On Plant Size

Product Name:

Impact Crusher Machine

Control System:

Automated

Highlight:

Cone Stone Crusher Automated

Efficient Fine Cone Crusher

Efficient Cone Stone Crusher

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C, T/T

Supply Ability

200 sets/year

High Power Cone Rock Crusher Stone Crushing Equipment Electricity Powered

Chat Now

Customizable Automated Mining Cone Crusher Varies Depending On Plant Size

Chat Now

530-700t/H Horizontal Cone Crusher Machine Designed For Primary And Secondary Crushing

Chat Now

High Capacity Cone Crusher Machine Mobile Crushing Systems Intelligent Control

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

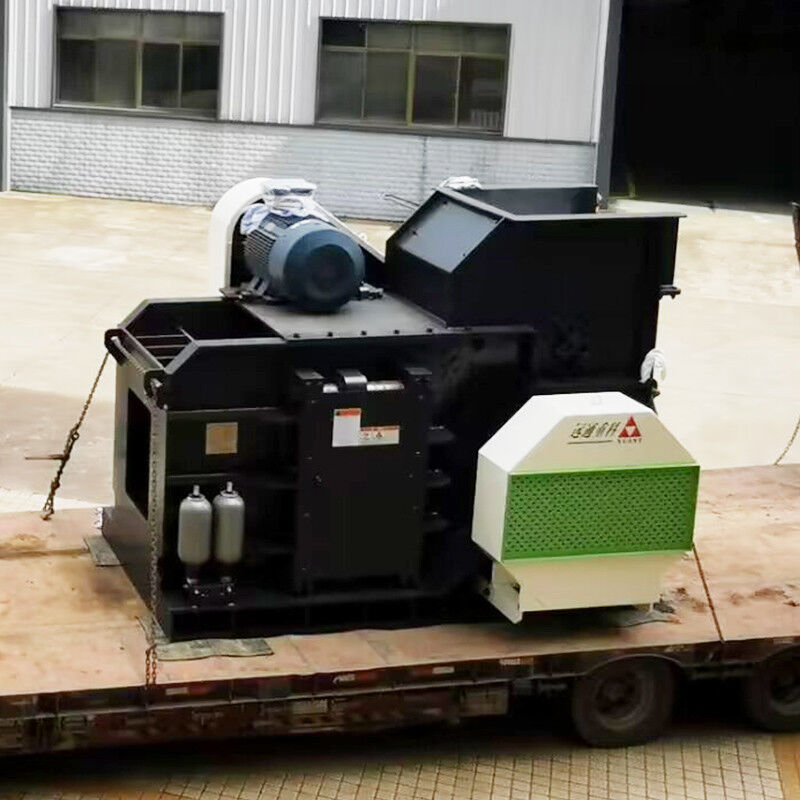

Efficient Horizontal Cone Stone Crusher

Our electricity-powered horizontal cone crusher delivers reliable performance for mining and quarry operations with automated functionality and customizable configurations.

Product Overview

This cone crushing machinery operates on electricity, providing a dependable power source for consistent crushing performance. Available in various plant sizes with customizable color options to match your existing equipment.

Key Features

High crushing ratio with feed particle sizes up to 400-900mm
Product rate below 30mm reaching 60% efficiency
Combined one-stage and two-stage crushing in single machine
Extended service life for vulnerable parts with 40% electricity savings
Intelligent touchscreen control for adjustable discharge port
Iron block protection with overload safety features
Anti-blockage design for full feeding operations
Automated one-key start system for safe, reliable operation
Low noise and vibration for environmentally friendly performance
Ideal for integration into mobile crushing systems

Technical Specifications

Model	Max. Feed Size (mm)	Discharge Range (mm)	Processing Capacity (t/h)	Installed Power (kw)	Dimensions (cm)	Weight (t)
PYH50	400	30-70	80-150	45-75	386x215x248	21
PYH100	500	30-70	120-260	90-132	398x273x275	33
PYH200	600	30-70	220-360	160-200	455x328x320	55
PYH300	700	30-70	320-480	220-315	523x378x380	93
PYH400	800	30-70	430-600	355-450	610x419x420	128
PYH500	900	30-80	530-700	500-630	680x473x482	172

Note: Specifications based on materials with crushing hardness (Mohs hardness 3-7.5). Performance may vary depending on material characteristics, feed grading, moisture content, clay content, and bulk density. All data for reference only.

Application Areas

This versatile cone crusher handles coarse, medium, and fine crushing of various materials with compressive strength up to 300MPa. Suitable for multiple industries including mining, aggregates, cement, metallurgy, and construction.

Hard and medium-hard ores and minerals
Various rock types and aggregates
Construction and industrial materials
Metal and non-metal mining operations
Sand and gravel production facilities
Slag processing and recycling applications

Configuration Questions

What type of stone requires crushing? (Soft rock or hard rock)
What is the required manufactured sand output? (100t/h? 300t/h?)
What is the maximum stone particle size? (70 cm? 50 cm?)
How many size specifications are needed for the manufactured sand?
