Name: 30-250t/H Capacity Horizontal Shaft Impactor Gold Rock Crusher Energy Saving
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PW3608
Availability: InStock

Home > Products > Gold Ore Crusher >

30-250t/H Capacity Horizontal Shaft Impactor Gold Rock Crusher Energy Saving

250t/H Horizontal Shaft Impactor

Gold Rock Crusher Energy Saving

250t/H Gold Rock Crusher

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PW3608

Chat Now

Request A Quote

Product Details

Installation Method:

Stationary

Product Name:

Horizontal Shaft Impactor Crusher

Application:

Building Materials, Mining Industry

Power Source:

Electricity

Control System:

Automated

Capacity:

Varies Depending On Plant Size

Warranty:

12 Months

Color:

Customizable

Highlight:

250t/H Horizontal Shaft Impactor

Gold Rock Crusher Energy Saving

250t/H Gold Rock Crusher

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C,T/T

Supply Ability

200 sets/year

High Efficient Horizontal Shaft Impact Mining Equipment Gold Ore Rock Crusher Automated

Chat Now

30-250t/H Capacity Horizontal Shaft Impactor Gold Rock Crusher Energy Saving

Chat Now

150t/H HSI Horizontal Shaft Impactor Gold Mining Rock Crusher 20% Investment Saving

Chat Now

500-630kw Mining Stone Cone Crusher Gold Ore Processing Equipment With High Crushing Ratio

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

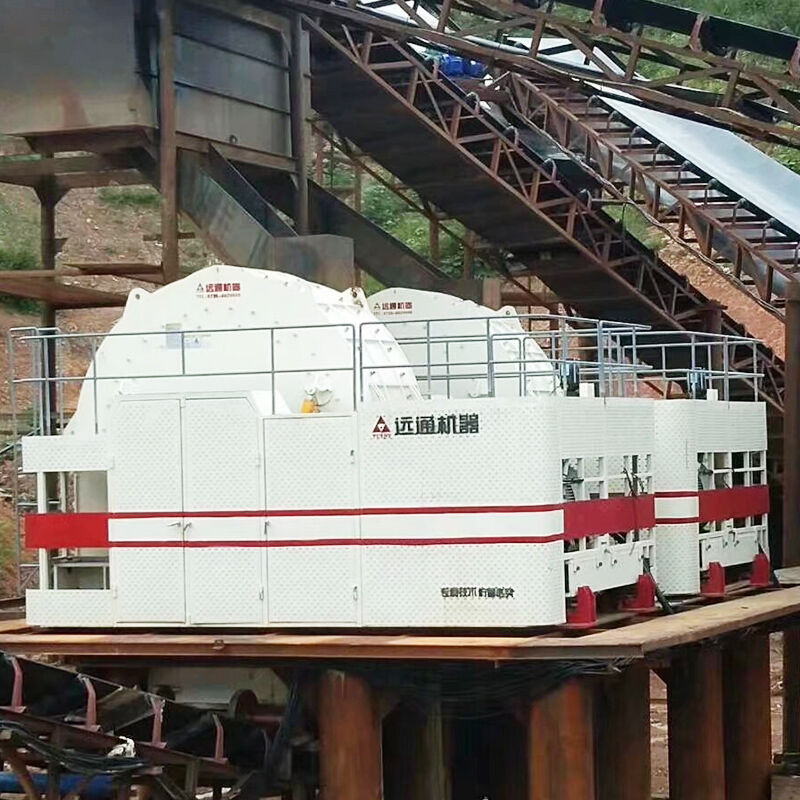

30-250t/H Capacity Energy Saving Horizontal Shaft Impactor Gold Rock Crusher

Designed for stationary installation, this Horizontal Shaft Impactor Crusher delivers reliable, durable performance for heavy-duty applications. Powered by electricity for energy-efficient operation, this crusher features customizable color options to blend seamlessly into any environment and an automated control system for precision material processing.

Product Upgrades

Advanced shock absorption system
Enlarged crushing chamber design
Automatic lubrication system

Key Specifications

Product Name	Horizontal Shaft Impactor Crusher
Warranty	12 Months
Power Source	Electricity
Installation	Stationary
Color	Customizable
Applications	Building Materials, Mining Industry
Control System	Automated

Technical Parameters

Model	Max. Feed Size (mm)	Capacity (t/h)	Product Size (mm)	Output (t/h)	Motor Power (kw)	Dimensions (mm)
PW2006	≤70	40-50	0-5mm / 5-31.5mm	25-30 / 10-15	90	360x150x207
PW2008	≤80	60-80	0-5mm / 5-31.5mm	40-55 / 15-20	160	362x191x210
PW3008	≤90	90-110	0-5mm / 5-31.5mm	55-65 / 20-30	250	385x242x255
PW3308	≤100	120-140	0-5mm / 5-31.5mm	70-90 / 30-40	315	432x296x266
PW3608	≤100	160-200	0-5mm / 5-31.5mm	110-130 / 30-40	400	518x318x312
PW4010	≤100	300-400	0-5mm / 5-31.5mm	200-250 / 60-80	2x315(400)	704x418x370

Frequently Asked Questions

What type of stone needs to be crushed? Soft rock or hard rock?
What is the required output of the manufactured sand? 100t/h? 300t/h?
What is the maximum size of the stone particles? 70 cm? 50 cm?
How many size specifications are needed for the manufactured sand?

Applications

The Horizontal Shaft Impactor Crusher (also known as Tertiary Impact Breaker) produces various plant sizes based on capacity requirements, making it highly versatile for diverse crushing needs. Applications include:

Crushing and processing aggregates, limestone, and mining materials
Manufactured sand production and rock shaping
Concrete, asphalt, and building materials processing

Support and Services

Our comprehensive technical support includes installation assistance, operation guidance, and maintenance services. We provide:

On-site training for operators and maintenance personnel
Regular maintenance and inspection services
24/7 technical support for emergencies
Customized solutions for specific requirements

Packing and Shipping

Each crusher is securely packaged in sturdy wooden crates with metal straps and foam padding to ensure safe transportation. We partner with reputable shipping companies and provide complete documentation and tracking for timely delivery to your specified address.
