Name: 90t/H Adjustable Limestone Hammer Crusher For Construction Sand And Gravel Plant
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PCX-1110
Availability: InStock

Home > Products > Limestone Crusher Machine >

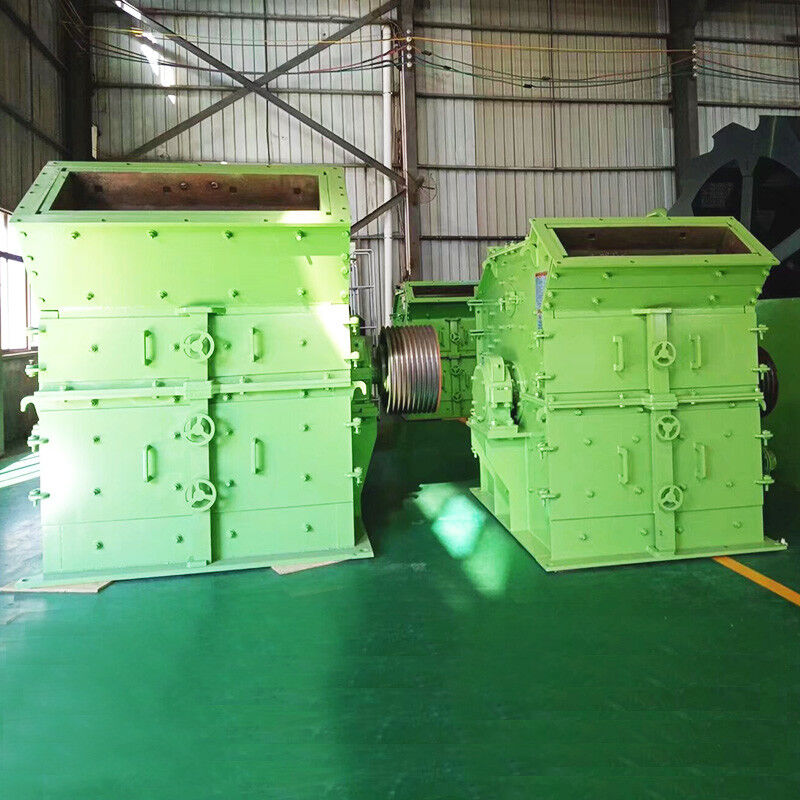

90t/H Adjustable Limestone Hammer Crusher For Construction Sand And Gravel Plant

132kw Limestone Hammer Crusher

90t/h Limestone Hammer Crusher

Fine Crusher for Construction Sand

Place of Origin:

China

Brand Name:

Yuantong

Certification:

ISO

Model Number:

PCX-1110

Chat Now

Request A Quote

Product Details

Control System:

Automated

Color:

Customizable

Warranty:

12 Months

Application:

Brick And Tile Manufacturing

Power Source:

Electricity

Capacity:

Varies Depending On Plant Size

Product Name:

Secondary Cone Crusher

Installation Method:

Stationary

Highlight:

132kw Limestone Hammer Crusher

90t/h Limestone Hammer Crusher

Fine Crusher for Construction Sand

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Small items: wooden box; Large device: container

Delivery Time

1-8 Weeks

Payment Terms

L/C,T/T

Supply Ability

200 sets/year

Automated Control Limestone Crushing Machine Cement Plant Crusher Stationary

Chat Now

Varied Capacity Horizontal Shaft Impact Crushing Machine Limestone Grinder Automated

Chat Now

High Speed Limestone Crusher Machine Impact Mill Rock Crusher Automated Control

Chat Now

30kw User Friendly Limestone Crushing Plant With Customizable Color

Chat Now

86--18175766687

mo@hnytgs.com

Chat Now

Product Description

Limestone Crusher Machine - 90 t/h Capacity Fine Crusher

Product Overview

High Efficiency Adjustable Fine Crusher with 90 t/h capacity and 132kw power, designed for construction sand and gravel processing plants. Ideal for feldspar processing to produce M Sand.

Application Specifications

Product Name	Capacity	Power	Input Material	Output Function	End Users
High Efficiency Adjustable Fine Crusher	90 t/h	132kw	Feldspar	M Sand	Construction Sand and Gravel Processing Plant

Product Features

PCX series high-efficiency adjustable fine crusher offers superior crushing performance with large crushing ratio and small discharge particle size. The particle size distribution can be easily adjusted to meet specific requirements.

Large crushing ratio for efficient material reduction
Small discharge particle size for fine material production
Adjustable particle size distribution for flexible operation
Convenient hammer handle replacement with various hammer head configurations
Unique crushing chamber structure maintains fineness and production consistency
No blockage during crushing, even with high moisture and viscosity materials

Technical Parameters

Model	PCX-1110
Hammer Quantity	21 pieces
Feeding Particle Size	<100 mm
Average Discharge Particle Size	≤3 mm \| ≤6 mm
Output	50-70 t/h \| 70-90 t/h
Motor Power	132 kw
Dimensions (L×W×H)	192×210×189 cm
Brickyard Capacity	160,000 units/day

Production Note: The above specifications are based on raw materials consisting of 50% shale and 50% coal gangue with fineness ≤3mm. Production variations occur based on raw material hardness and moisture content. Pure shale production is approximately 30% higher than table values, while pure coal gangue production is 20-30% lower.

Technical Support & Services

Installation and commissioning assistance
Regular maintenance and inspection
Troubleshooting and problem resolution
Spare parts and wear materials supply
Operational training and support
Performance upgrades and retrofits

Frequently Asked Questions

What is the certification of Yuantong Secondary Cone Crusher?

Yuantong Secondary Cone Crusher is certified with ISO.

Where is Yuantong Secondary Cone Crusher manufactured?

Yuantong Secondary Cone Crusher is manufactured in China.

What is the minimum order quantity for Yuantong Secondary Cone Crusher?

The minimum order quantity for Yuantong Secondary Cone Crusher is 1 set.

What are the payment terms for Yuantong Secondary Cone Crusher?

The payment terms for Yuantong Secondary Cone Crusher are L/C and T/T.

Packing & Shipping

Packaging: Equipment is securely packaged in plywood boxes to ensure safe transportation.

Shipping: Worldwide shipping available with various carriers. Shipping costs vary by destination and method. Contact us for a shipping quote.
