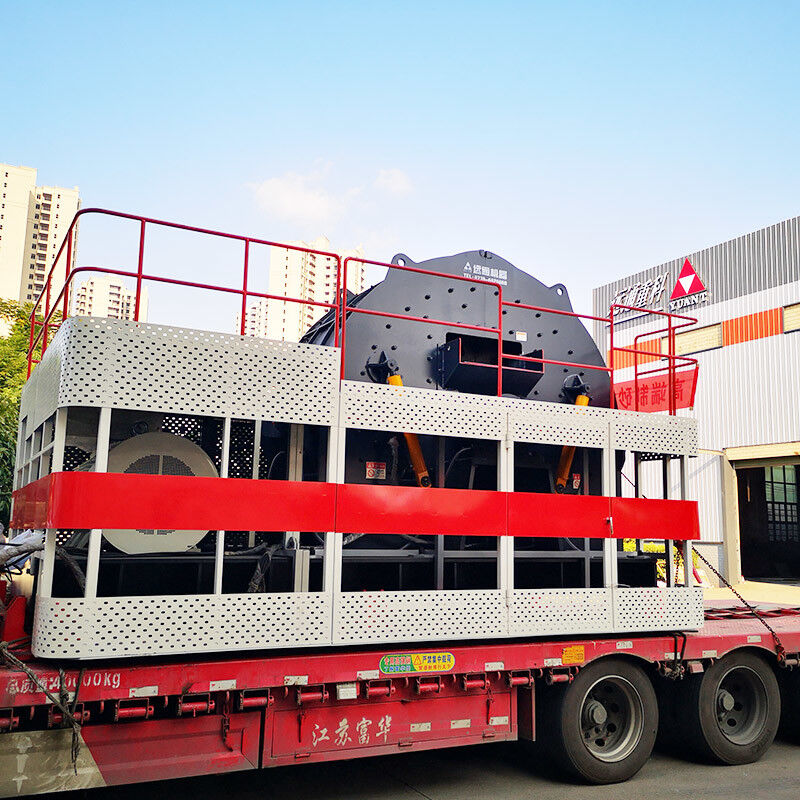

300 t/h 800kw Cement Clinker Horizontal Shaft Impactor Crusher
PW series horizontal shaft impact crusher was developed by our company in the early 2000s as a solution to the high-power consumption, significant wear and tear, low sand production rate, and unsatisfactory shaping effects of various types of vertical shaft impact crushers. This new generation mechanism sand and shaping equipment has now evolved to the third and fourth generation (PWS series), with numerous national technical patents. The machine features a unique structure with perfect "rock-on-rock" and "rock-on-iron" multiple crushing and high-speed self-crushing shaping capabilities, leading the industry in technical performance.
Applications
Energy Saving
Product Specifications
| Product Name |
Capacity |
Power |
Input Material |
Output Function |
End Users |
| Horizontal Shaft Impactor Crusher |
300 t/h |
800kw |
Cement clinker |
Cement raw materials |
for Cement plant |
This equipment is widely used in the production of mechanism sand and shaping for limestone, river pebbles, granite, basalt, metal ores, and non-metallic ores. Applications include mechanism sand production and shaping for hydraulic and hydroelectric projects, highways, high-speed railways, bridges, airport runways, municipal engineering, and high-rise buildings. It also serves for primary and secondary crushing in mining sectors and material crushing for building materials, metallurgy, chemical industry, refractory materials, cement, abrasives, and other industries.
Technical Parameters
| Model |
Max. Feed Size (mm) |
Capacity (t/h) |
Product Size (mm) |
Output (t/h) |
Motor Power (kw) |
Dimensions (mm) |
| PW2006 |
≤70 |
40-50 |
0-5mm
5-31.5mm |
25-30
10-15 |
90 |
360x150x207 |
| PW2008 |
≤80 |
60-80 |
0-5mm
5-31.5mm |
40-55
15-20 |
160 |
362x191x210 |
| PW3008 |
≤90 |
90-110 |
0-5mm
5-31.5mm |
55-65
20-30 |
250 |
385x242x255 |
| PW3308 |
≤100 |
120-140 |
0-5mm
5-31.5mm |
70-90
30-40 |
315 |
432x296x266 |
| PW3608 |
≤100 |
160-200 |
0-5mm
5-31.5mm |
110-130
30-40 |
400 |
518x318x312 |
| PW4010 |
≤100 |
300-400 |
0-5mm
5-31.5mm |
200-250
60-80 |
2x315(400) |
704x418x370 |
Note: The above data is based on materials with crushing hardness (Mohs hardness of 3-7.5). Depending on the nature of materials with different hardness, feed grading, moisture content, clay content, bulk density, and characteristics may vary. All data is for reference only.
Performance Characteristics vs Vertical Shaft Impact Crushers
- Approximately 40% energy savings
- Extended replacement cycles for throw heads by 5-7 times, low wear and tear, significantly increasing continuous production cycles
- Large feed particle size, sand production rate around 70%, with even higher sand production rates for melon seeds stones
- Can adjust grading according to the characteristics of various materials, low oversize rate, excellent particle shape
Advantages
Support and Services
- Installation and commissioning assistance
- Regular maintenance and inspection
- Troubleshooting and problem resolution
- Spare parts and wear materials supply
- Operational training and support
- Upgrades and retrofits to improve performance and efficiency
Frequently Asked Questions
Q1: What is the certification of Yuantong Secondary Cone Crusher?
A1: Yuantong Secondary Cone Crusher is certified with ISO.
Q2: Where is Yuantong Secondary Cone Crusher manufactured?
A2: Yuantong Secondary Cone Crusher is manufactured in China.
Q3: What is the minimum order quantity for Yuantong Secondary Cone Crusher?
A3: The minimum order quantity for Yuantong Secondary Cone Crusher is 1 set.
Q4: What are the payment terms for Yuantong Secondary Cone Crusher?
A4: The payment terms for Yuantong Secondary Cone Crusher are L/C and T/T.
Packing and Shipping
Packaging: The equipment will be packaged securely in a plywood box to ensure safe transportation.
Shipping: We offer worldwide shipping with a variety of carriers. Shipping costs will vary based on the destination and shipping method selected. Please contact us for a shipping quote.
